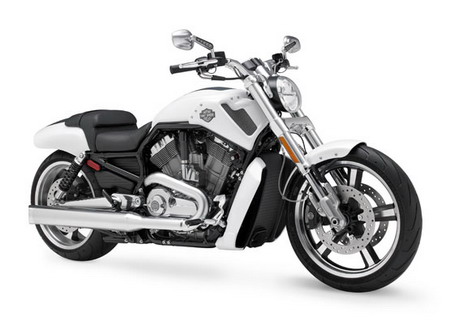

2011 Harley Davidson VRSCF V-Rod Muscle

2011 Harley Davidson VRSCF V-Rod Muscle Review

2011 Harley-Davidson VRSCF V-Rod Muscle is one motorcycle issued by the manufacturer Harley Davidson with VRSC edition which supported the body design is comfortable to use. 2011 Harley-Davidson VRSCF V-Rod Muscle uses Frame Steel perimeter upper frame with hydroformed main rails and bolt-on lower frame rails; MIG welded. And brake use Caliper Type 4-piston front and rear. As for the engine, this motorcycle has a capacity of 1250 cc engine with a ratio of bore x stroke 105 mm x 72 mm. For the type of engine is Engine3 Liquid-cooled, Revolution®, 60° V-Twin, Valves Overhead cam, 4 valves per cylinder, solid tappet with shim-under-bucket lash adjustmentr.

2011 Harley Davidson VRSCF V-Rod Muscle2011 Harley Davidson VRSCF V-Rod Muscle 1

2011 Harley Davidson VRSCF V-Rod Muscle2011 Harley Davidson VRSCF V-Rod Muscle 2

2011 Harley Davidson VRSCF V-Rod Muscle2011 Harley Davidson VRSCF V-Rod Muscle 3

2011 Harley Davidson VRSCF V-Rod Muscle2011 Harley Davidson VRSCF V-Rod Muscle 4

2011 Harley Davidson VRSCF V-Rod Muscle2011 Harley Davidson VRSCF V-Rod Muscle 5

2011 Harley Davidson VRSCF V-Rod Muscle - USA Specifications
U.S. MSRP - Vivid Black $17,199. Color Option $17,499. Two-Tone Option $17,699

DIMENSIONS
Length 92.8 in. (2357 mm)
Overall Width 40.2 in. (1021 mm)
Overall Height 45.7 in. (1161 mm)
Seat Height:
• Laden2 25.6 in. (650 mm)
• Unladen 26.7 in. (678 mm)

Ground Clearance 4.8 in. (122 mm)
Rake (steering head) 34°
Fork Angle 34°
Trail 5.6 in. (142 mm)
Wheelbase 67.0 in. (1702 mm)
Tires (Michelin® Scorcher™ “11” front and rear):
• Front – Scorcher™ “11” 120/70ZR-19 60W
• Rear – Scorcher™ “11” 240/40R-18 79V
Fuel Capacity 5.0 gal. (18.9 L) (warning light at approximately 0.5 gal.)
Oil Capacity (w/filter) 5.0 qts. (4.7 L)
Coolant Capacity 2.5 qts. (2.4 L)
Weight:
• As Shipped 640 lbs. (290.0 kg)
• In Running Order 673 lbs. (305.0 kg)
• Gross Vehicle Weight Rating 1075 lbs. (488.0 kg)
• Gross Axle Weight Rating
• Front 377 lbs. (171.0 kg)
• Rear 698 lbs. (317.0 kg)

ENGINE
Engine3 Liquid-cooled, Revolution®, 60° V-Twin
Valves Overhead cam, 4 valves per cylinder, solid tappet with shim-under-bucket lash adjustment
Bore x Stroke 4.134 in. x 2.835 in. (105 mm x 72 mm)
Displacement 76.28 cu. in. (1250 cc)
Compression Ratio 11.5:1
Fuel System3 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Down draft intake
Lubrication System Wet-sump, integrated with powertrain crankcase

DRIVETRAIN
Primary Drive Gear, 117/64 ratio
Final Drive Belt, 72/28 ratio
Clutch 9-plate, wet, A&S (Assist & Slip)
Transmission 5-speed
U.S. Gear Ratios (overall):
• 1st 11.752
• 2nd 7.898
• 3rd 6.322
• 4th 5.459
• 5th 4.899

CHASSIS
Frame Steel perimeter upper frame with hydroformed main rails and bolt-on lower frame rails; MIG welded
Swingarm Polished, one-piece cast aluminum Front Forks 43 mm Inverted
Rear Shocks Preload adjustable
Wheels4: Black, 5-Spoke Cast Aluminum
• Front 19 in. x 3 in. (483 mm x 76 mm)
• Rear 18 in. x 8 in. (457 mm x 203 mm)
Brakes:
• Caliper Type 4-piston front and rear
• Rotor Type (diameter x width): Patented, one-piece floating rotor (front), uniform expansion rotor (rear)
• Front (dual) 11.81 in. x .2 in. (300 mm x 5 mm)
• Rear 11.81 in. x .28 in. (300 mm x 7 mm)
• Anti-lock Braking System (option) Available
Suspension Travel:
• Front Wheel 4 in. (102 mm)
• Rear Wheel 2.9 in. (74 mm)

PERFORMANCE
Engine Torque5 (per SAE J1349):
• North America 86 ft. lbs. @ 6500 RPM (117 Nm @ 6500 RPM)
Lean Angle (per SAE J1168):
• Right 32°
• Left 32°
Fuel Economy6
(EPA urban/highway test)
34/42 mpg (6.92/5.60 L/100 km)

ELECTRIC
Battery (per Battery Council International Rating)
Sealed, maintenance-free, 12V, 19-amp/hour, 270 cca
Charging Three-phase, 38-amp system (439W @ 13V, 2000 RPM, 489W max power @ 13V)
Starting 0.08 kW electric with direct drive starter motor engagement
Lights (as per country regulation):
• Headlamp (quartz halogen) 55-watt low beam, 65-watt high beam
• Rear Tail/Stop/Turn Signal Lights Integrated Dual Color LED
• Front Turn Signal Lights Integrated LED
• Indicator Lamps - High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system7 (optional), coolant temperature, low fuel warnings

COLOR OPTIONS
Vivid Black
Brilliant Silver Pearl
Chrome Yellow
White Hot Denim

WARRANTY
Warranty8 24 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter

1 Vehicles depicted may differ from vehicles manufactured and delivered.
Specifications and prices listed may differ from specifications and prices of
vehicles manufactured and delivered. All product descriptions (including depictions,
specifications, dimensions, measurements, ratings and competitive comparisons) are
based on available information at the time of publication. Although such descriptions
are believed correct, errors and changes can occur and complete accuracy cannot
be guaranteed. Harley-Davidson may make changes at any time to prices and
specifications, and may change or discontinue models, without notice and without
incurring any obligation. Attention: Vehicles in the configurations shown and many
of the accessories described in this catalog may not be available for sale or use in
some locations. Please check with your dealer for complete product details and the
latest information. All models feature 6-speed transmission (VRSC™ models and
Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch
with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
2 Measurement reflects 180 lb. (81.7 kg) operator weight.
3 Recommended 91 octane or higher fuel (R+M)/2.
4 Standard and optional wheels may vary by country and region.
5 Values shown are nominal. Performance may vary by country and region.
6 Estimated from fuel economy tests on a sample motorcycle from the corresponding
family conducted by Harley-Davidson under ideal laboratory conditions. Not all
motorcycle models undergo fuel economy testing. Fuel economy and mileage may
vary among motorcycle models within a family. Your mileage may vary depending
on your personal riding habits, weather conditions, trip length, vehicle condition and
vehicle configuration and other conditions. Break-in mileage may vary.
7 North America security system includes immobilizer; outside North America the
security system includes immobilizer and siren.
8 See motorcycle owner’s manual for complete details.

2011 Harley Davidson VRSCF V-Rod Muscle - Canada Specifications

Canadian MSRP - See your local retailer for pricing information.

DIMENSIONS
Metric Units
Length 2410 mm
Seat Height
Laden 1
Unladen 1 705 mm
Ground Clearance 105 mm
Rake Steering Head
Trail 142 mm
Wheelbase 1700 mm
Fuel Capacity 18.9 L
Oil Capacity 4.7 L
Weight
Dry Weight 292 kg
Running Order 307 kg
Luggage Capacity
Volume
Weight

POWERTRAIN
Engine 2 Liquid-cooled, Revolution®, 60° V-TwinLiquid-cooled, Revolution®, 60° V-Twin
Displacement 1247 cc
Bore x Stroke in. / in.105 mm / 72 mm
Engine Torque J1349
Engine Torque 3 ft. lbs. @ rpm116 Nm @ 6500 rpm
Fuel System 4 Electronic Sequential Port Fuel Injection (ESPFI)Electronic Sequential Port Fuel Injection (ESPFI)
Compression Ratio 11.5:1
Primary Drive Gear, 64/117 ratioGear, 64/117 ratio
Fuel Economy
Fuel Economy City 5 6.9 l/100km
Fuel Economy Hwy 5 5.6 l/100km
Gear Ratio (Overall)
1st 11.749
2nd 7.896
3rd 6.321
4th 5.456
5th 4.888
6th

WHEELS / TIRES
Wheels
Front 6 Black, 5-Spoke Cast AluminumBlack, 5-Spoke Cast Aluminum
Wheel Option 6
Rear 6 Black, 5-Spoke Cast AluminumBlack, 5-Spoke Cast Aluminum
Tire Size
Front
Rear

ELECTRICAL
Instruments Electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, tachometerElectronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, tachometer
Indicator Lamps 7 High beam, neutral, low oil pressure, turn signals, engine diagnostics, security system (optional), coolant temperature, low fuel warningsHigh beam, neutral, low oil pressure, turn signals, engine diagnostics, security system (optional), coolant temperature, low fuel warnings

CHASSIS
Brakes 4-piston front and rear4-piston front and rear
Parking Brake
Lean Angle
Exhaust System Satin chrome, dual side exhaust systemSatin chrome, dual side exhaust system

COLOR OPTIONS
Vivid Black
Brilliant Silver Pearl
Chrome Yellow
White Hot DenimVivid Black
Brilliant Silver Pearl
Chrome Yellow
White Hot Denim

1 Measurement reflects 180 lb. (81.7 kg) operator weight.
2 Recommended 91 octane or higher fuel (R+M)/2.
3 Values shown are nominal. Performance may vary by country and region.
4 Standard and optional fuel systems may vary by country.
5 Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6 Standard and optional wheels may vary by country and region.
7 North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
8 See motorcycle owner's manual for complete details.

Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information. All models feature 6-speed transmission (VRSC™ models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
