2011 Harley-Davidson FLTRU Road Glide Ultra

2011 Harley Davidson FLTRU Road Glide Ultra is one of the type issued by the motorcycle manufacturer Harley Davidson with tour edition. This motorcycle has a capacity of 1690 cc engine with a ratio of Bore x stroke 98.4 mm x 111.3 mm. For the type of engine that Is a Engine4 Air-cooled, Twin Cam 103™Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder.

2011 Harley-Davidson FLTRU Road Glide Ultra 2011 Harley-Davidson FLTRU Road Glide Ultra Rear

2011 Harley-Davidson FLTRU Road Glide Ultra 2011 Harley-Davidson FLTRU Road Glide Ultra Right Front

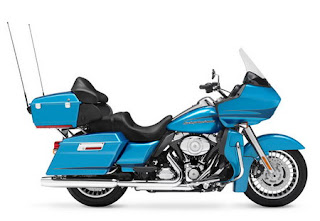

2011 Harley-Davidson FLTRU Road Glide Ultra 2011 Harley-Davidson FLTRU Road Glide Ultra Right

2011 Harley-Davidson FLTRU Road Glide Ultra Left

2011 Harley-Davidson FLTRU Road Glide Ultra 2011 Harley-Davidson FLTRU Road Glide Ultra Test Drive


2011 Harley Davidson FLTRU Road Glide Ultra - USA Specifications
U.S. MSRP - Vivid Black $22,499. Solids $23,059
DIMENSIONS
Length 98.7 in. (2507 mm)
Overall Width 36.2 in. (919 mm)
Overall Height 55.0 in. (1397 mm)
Seat Height:
• Laden2 27.3 in. (693 mm)
• Unladen 29.1 in. (739 mm)
Ground Clearance 5.1 in. (130 mm)
Rake (steering head) 26°
Fork Angle 29.2°
Trail 6.7 in. (170 mm)
Wheelbase 63.5 in. (1613 mm)
Tires (Dunlop® Harley-Davidson Series, bias blackwall front and rear):
• Front – D408F
• Rear – D407
BW 130/80B17 65H
BW 180/65B16 81H
Fuel Capacity 6.0 gal. (22.7 L)
(warning light at approximately 1.0 gal.)
Oil Capacity (w/filter) 4.0 qts. (3.8 L)
Transmission Capacity 1.0 qts.
Primary Chain
Case Capacity3 1.4 qts.
Weight:
• As Shipped 850 lbs. (385.6 kg)
• In Running Order 888 lbs. (402.8 kg)
• Gross Vehicle Weight Rating 1360 lbs. (616.9 kg)
• Gross Axle Weight Rating
• Front 500 lbs. (226.8 kg)
• Rear 927 lbs. (420.5 kg)

ENGINE
Engine4 Air-cooled, Twin Cam 103™
Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.875 in. x 4.38 in. (98.4 mm x 111.3 mm)
Displacement 103 cu. in. (1690 cc)
Compression Ratio 9.6:1
Fuel System4 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Fiberglass, washable
Lubrication System Pressurized, dry-sump with oil cooler

DRIVETRAIN
Primary Drive Chain, 34/46 ratio
Final Drive Belt, 32/68 ratio
Clutch Multi-plate, wet
Transmission 6-Speed Cruise Drive®
U.S. Gear Ratios (overall):
• 1st 9.593
• 2nd 6.65
• 3rd 4.938
• 4th 4.0
• 5th 3.407
• 6th 2.875

CHASSIS
Frame Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded
Swingarm Mild steel; two-piece drawn and welded section; forged junctions; MIG welded
Front Forks 41.3 mm telescopic, triple-circuit damping
Rear Shocks Air-adjustable
Wheels5 (Chrome, Profile Tubeless Laced Aluminum):
• Front Black, 28-spoke Cast Aluminum 17 in. x 3 in. (432 mm x 76 mm)
• Rear Black, Slotted Disc Cast Aluminum 16 in. x 5 in. (406 mm x 127 mm)
Brakes:
• Caliper Type 32 mm, 4-piston fixed front and rear
• Rotor Type (diameter x width): Patented, fixed rotors
• Front (dual) 11.81 in. x .2 in. (300 mm x 5 mm)
• Rear 11.81 in. x .28 in. (300 mm x 7 mm)
• Anti-lock Braking System (option) Available
Suspension Travel:
• Front Wheel 4.6 in. (117 mm)
• Rear Wheel 3 in. (76 mm)
Engineered for Sidecar Use Available

PERFORMANCE
Engine Torque6 (per SAE J1349):
• North America 102 ft. lbs. @ 3500 RPM (138 Nm @ 3500 RPM)
Lean Angle:
• Right 33°
• Left 31°
Fuel Economy7
(EPA urban/highway test)
35/54 mpg (6.70/4.40 L/100 km)

ELECTRIC
Battery (per Battery Council International Rating)
Sealed, maintenance-free, 12V, 28-amp/hour, 270 cca
Charging Three-phase, 50-amp system (585W @ 13V, 2000 RPM, 650W max power @ 13V)
Starting 1.2 kW electric with solenoid shift starter motor engagement
Lights (as per country regulation):
• Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
• Tail/Stop Lights 8W/28W (5W/21W)
• Turn Signal Lights 28W (21W) self-canceling
• Indicator Lamps - High beam, running lights, directional, light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system8 (optional), 6-speed, low fuel warning, cruise control,
ABS (optional)

COLOR OPTIONS
Solids
• Vivid Black
• Brilliant Silver Pearl
• Cool Blue Pearl
• Merlot Sunglo

WARRANTY
Warranty9 24 months 0(unlimited mileage)
Service Interval First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter


2011 Harley Davidson FLTRU Road Glide Ultra - Canada Specifications Canadian MSRP - See your local retailer for pricing information.

DIMENSIONS Metric Units
Length 2525 mm
Seat Height
Laden 1
Unladen 1 740 mm
Ground Clearance 125 mm
Rake Steering Head
Trail 170 mm
Wheelbase 1630 mm
Fuel Capacity 22.7 L
Oil Capacity 3.8 L
Weight
Dry Weight 400 kg
Running Order 413 kg

POWERTRAIN
Engine 2 Air-cooled, Twin Cam 103™Air-cooled, Twin Cam 103™
Displacement 1690 cc
Bore x Stroke in. / in.98.4 mm / 111.1 mm
Engine Torque J1349
Engine Torque 3 ft. lbs. @ rpm135 Nm @ 3250 rpm
Fuel System 4 Electronic Sequential Port Fuel Injection (ESPFI)Electronic Sequential Port Fuel Injection (ESPFI)
Compression Ratio 9.6:1
Primary Drive Chain, 34/46 ratioChain, 34/46 ratio
Fuel Economy
Fuel Economy City 5 6.72 l/100km
Fuel Economy Hwy 5 4.36 l/100km
Gear Ratio (Overall)
1st 9.594
2nd 6.65
3rd 4.939
4th 3.999
5th 3.407
6th 2.875

WHEELS / TIRES
Wheels
Front 6 Black, 28-Spoke Cast AluminumBlack, 28-Spoke Cast Aluminum
Wheel Option 6 Chrome, Aluminum Profile LacedChrome, Aluminum Profile Laced
Rear 6 Black, 28-Spoke Cast AluminumBlack, 28-Spoke Cast Aluminum

ELECTRICAL
Instruments Fairing-mounted electronic speedometer with odometer; time-of-day clock on CD player/stereo; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6-speed indicator light; cruise control indicator light; Tachometer with fuel, voltage, oil pressure and ambient air temperature gaugesFairing-mounted electronic speedometer with odometer; time-of-day clock on CD player/stereo; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6-speed indicator light; cruise control indicator light; Tachometer with fuel, voltage, oil pressure and ambient air temperature gauges
Indicator Lamps 7 High beam, neutral, low oil pressure, engine diagnostics, turn signals, security system(optional), ABS (optional), cruise control (optional), 6-speed, low fuel warningsHigh beam, neutral, low oil pressure, engine diagnostics, turn signals, security system(optional), ABS (optional), cruise control (optional), 6-speed, low fuel warnings

CHASSIS
Brakes 32mm, 4-piston fixed front and rear32mm, 4-piston fixed front and rear
Parking Brake
Lean Angle
Exhaust System Chrome, 2-1-2 dual exhaust with slash-up mufflersChrome, 2-1-2 dual exhaust with slash-up mufflers

COLOR OPTIONS
Vivid Black
Brilliant Silver Pearl
Cool Blue Pearl
Merlot SungloVivid Black
Brilliant Silver Pearl
Cool Blue Pearl
Merlot Sunglo
