2011 Husqvarna TE511

2011 Husqvarna TE511 Review

2011 Husqvarna TE511 is one motorcycle issued by the manufacturer Husqvarna with Trail edition which supported the body design is comfortable to use. 2011 Husqvarna TE511 has a capacity 477.5cc with Bore & Stroke 101 mm x 59.6 mm. For engine type Single cylinder, four stroke.

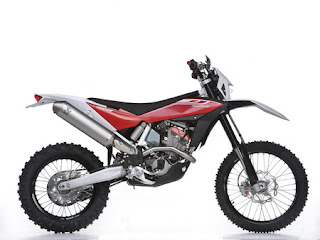

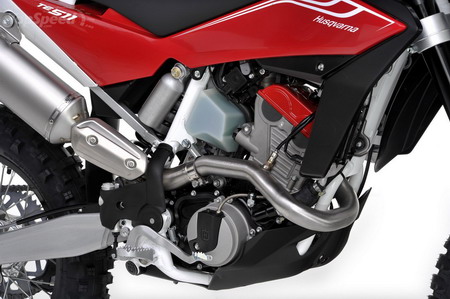

2011 Husqvarna TE5112011 Husqvarna TE511 1

2011 Husqvarna TE5112011 Husqvarna TE511 2

2011 Husqvarna TE5112011 Husqvarna TE511 3

2011 Husqvarna TE5112011 Husqvarna TE511 4

2011 Husqvarna TE5112011 Husqvarna TE511 5


2011 Husqvarna TE511 - International Specifications
MSRP* $ See your local Husqvarna dealer for pricing.


CARATTERISTICHE TECNICHE / Technical data

CARATTERISTICHE GENERALI
General features
DIMENSIONI, PESO, CAPACITÀ/
Dimensions, weight, capacities
INTERASSE / Wheelbase ............................ mm/in. 1490 / 58.66
LUNGHEZZA TOTALE / Overall lenght ....... mm/in. 2280 / 89.76
LARGHEZZA MAX. / Overall width ............ mm/in. 820 / 32.28
ALTEZZA MAX. / Overall height ................. mm/in. 1260 / 49.61
ALTEZZA SELLA / Saddle height ............... mm/in. 963 / 37.91
ALTEZZA MIN.DA TERRA /
Min. ground clearance ................................. mm/in. 335 / 13.19
INCLINAZIONE CANNOTTO DI STERZO /
Caster angle....................................................................................25.8°
AVANCORSA / Trail .................................... mm/in. 101 / 3.98
PESO IN ORDINE DI MARCIA, SENZA CARBURANTE/
Kerb weight, without fuel ........................... Kg/lb. 113 / 249.12
CAPACITÀ SERBATOIO CARBURANTE /
Fuel tank capacity ....................................... l 8.5
U.S. Gallons 1.93
Imp. Gallons 1.85
Q.TA' OLIO NEL BASAMENTO /
Transmission oil ........................................... l 1.15
U.S. Quarts 1.04
Imp. Quarts 1.01
MOTORE / Engine
CARATTERISTICHE / Characteristics
TIPO / Type
MONOCILINDRICO 4 TEMPI / Single cylinder, four stroke
ALESAGGIO / Bore ..................................... mm/in. 101 / 3.98
CORSA / Stroke ........................................... mm/in. 59.6 / 2.35
CILINDRATA / Displacement ........................ cm3/cu.in. 477.5 / 29.14
RAPPORTO DI COMPRESSIONE /
Compression ratio .......................................................................... 12.0:1
AVVIAMENTO / Starting .............................. ELETTRICO / Electric start
SCARICO / Exhaust system ........................ SCARICO COMPLETO IN
ACCIAIO INOX (SILENZIATORE E COLLETTORI) / Full stainless steel
system (silencer and pipes)
RAFFREDDAMENTO / Cooling ..................... A LIQUIDO / By liquid
RADIATORI ACQUA / Water radiator .......... N°/No 2
DISTRIBUZIONE / Timing system
TIPO / Type
DOPPIO ALBERO A CAMME IN TESTA, 4 VALVOLE
/ "DOHC", 4 valve
LUBRIFICAZIONE / Lubrication
TIPO / Type
A CARTER SECCO CON DUE POMPE A LOBI E FILTRO A CARTUCCIA /
Dry sump with two oil pump rotor and cartridge filter
ACCENSIONE / Ignition
TIPO / Type
ELETTRONICA A SCARICA CAPACITIVA CON ANTICIPO VARIABILE A
CONTROLLO DIGITALE / C.D.I. electronic, with variable advance
(digital control)
TIPO CANDELA / Spark plug type ............... "NGK" CR 9EKB
DISTANZA ELETTRODI / Spark plug gap mm/in 0,7 / 0.0275
ALIMENTAZIONE/ Fuel system
TIPO / Type ...................................................... ad iniezione elettronica /
electronic injection feed
CORPO FARFALLATO/Throttle body .......... KEIHIN D46
FRIZIONE / Clutch
TIPO / Type
MULTIDISCO IN BAGNO D'OLIO CON COMANDO IDRAULICO / Wet,
multiplate type; hydraulic control
N° DISCHI CONDUTTORI / Driving disc no .............................................. 6
N° DISCHI CONDOTTI / Driven disc no ................................................... 6
TRASMISSIONE PRIMARIA / Primary drive
CORONA FRIZIONE / Clutch gear ................ Z/Teeth 22
LIMITATORE DI COPPIA/ Torque limiter ....... Z/Teeth 36/20
INGRANAGGIO PRIMARIA/ Primary gear .... Z/Teeth 32
RAPPORTO DI TRASMISSIONE / Transmission ratio 2.618
CAMBIO VELOCITÀ/ Transmission
TIPO / Type
CON INGRANAGGI SEMPRE IN PRESA / Constant mesh gear type
N° MARCE / Speed gears no .................................................................. 6
RAPPORTI DI TRASMISSIONE / Internal ratios
..................................................................... 1ª/1st 2.286 (32/14)
..................................................................... 2ª/2nd 1.875 (30/16)
..................................................................... 3ª/3rd 1.533 (23/15)
..................................................................... 4ª/4th 1.250 (25/20)
..................................................................... 5ª/5th 1.043 (24/23)
..................................................................... 6ª/6th 0.917 (22/24)
TRASMISSIONE SECONDARIA / Secondary drive
PIGNONE USCITA CAMBIO /
Transmission sprocket ................................ Z/Teeth 15
CORONA POSTERIORE /
Rear wheel sprocket ................................... Z/Teeth 51
RAPPORTO DI TRASMISSIONE /
Transmission ratio .......................................................................... 3.40
CATENA DI TRASMISSIONE / Driving chain
MARCA E TIPO / Manufacturer and type "REGINA" 135 ORN 6-LKS (5/
8"x1/4")
RAPPORTI TOTALI DI TRASMISSIONE / Overall ratios
..................................................................... 1ª/1st 20.348
..................................................................... 2ª/2nd 16.689
..................................................................... 3ª/3rd 13.645
..................................................................... 4ª/4th 11.126
..................................................................... 5ª/5th 9.283
..................................................................... 6ª/6th 8.162

CARATTERISTICHE TECNICHE / Technical data
MOTOTELAIO / Chassis
TELAIO / Frame
TIPO / Type
DOPPIO TRAVE E DOPPIA CULLA IN TUBI D'ACCIAIO
ALTORESISTENZIALE AL Cr/Mo A SEZIONE TONDA ED ELLITTICA;
TELAIETTO POSTERIORE IN LEGA D'ALLUMINIO / Double beam and
double cradle high resistance Cr/Mo steel (round and elliptical section);
Light alloy rear frame
SOSPENSIONE ANTERIORE / Front suspension
TIPO / Type
FORCELLA TELEIDRAULICA A STELI ROVESCIATI E PERNO AVANZATO;
REGOLAZIONE FRENO IDRAULICO IN COMPRESSIONE ED
ESTENSIONE / "Upside-Down" telescopic hydraulic fork with
advanced axle; compression and rebound stroke adjustment
Ø STELI / Fork legs dia. ............................... mm/in. 48 /1.89
ESCURSIONE /
Stroke .......................................................... mm/in. 295 / 11.61
PRODUTTORE /
Manufacturer .........................................................................."KAYABA"
SOSPENSIONE POSTERIORE / Rear suspension
TIPO / Type
CINEMATISMO PROGRESSIVO CON MONOAMMORTIZZATORE
IDRAULICO; REGOLAZIONE DEL PRECARICO DELLA MOLLA E DEL
FRENO IDRAULICO IN COMPRESSIONE (ALTE E BASSE VELOCITA')
ED ESTENSIONE / Progressive link with single hydraulic shock
absorber; spring preload adjustment, compression (high and low
speed) and rebound adjustment
ESCURSIONE RUOTA / Wheel stroke ......... mm/in. 296 / 11.65
PRODUTTORE AMMORTIZZATORE /
Shock absorber manufacturer ..............................................."KAYABA"
FRENO ANTERIORE / Front brake
TIPO / Type
A DISCO FISSO, TIPO "WAVE", CON COMANDO IDRAULICO E PINZA
FLOTTANTE A DOPPIO PISTONCINO Ø24 / Fixed disc, "Wave" type,
with hydraulic control and double Ø24 piston floating caliper
Ø DISCO / Disc dia. ...................................... mm/in 260 / 10.24
FRENO POSTERIORE / Rear brake
TIPO / Type
A DISCO FISSO, TIPO "WAVE", CON COMANDO IDRAULICO E PINZA
FLOTTANTE A SINGOLO PISTONCINO Ø26 / Fixed disc, "Wave" type,
with hydraulic control and floating Ø26 piston caliper
Ø DISCO / Disc dia. ...................................... mm/in 240 / 9.45
CERCHIO ANTERIORE / Front rim
MATERIALE / Material........................... LEGA D'ALLUMINIO / Light alloy
DIMENSIONI / Size ........................................ 1,60"x21"
CERCHIO POSTERIORE / Rear rim
MATERIALE / Material............................LEGA D'ALLUMINIO / Light alloy
DIMENSIONI / Size ........................................ 2,15"x18"
PNEUMATICO ANTERIORE / Front tire
TIPO / Type.........................................."MICHELIN" Enduro Competition 3
DIMENSIONE / Size ................................................................... 90/90-21"
PNEUMATICO POSTERIORE / Rear tire
TIPO / Type.........................................."MICHELIN" Enduro Competition 3
DIMENSIONE / Size ................................................................. 140/80-18"
IMPIANTO ELETTRICO / Electrical equipment
TENSIONE IMPIANTO / Voltage .......................................................... 12V
POTENZA LAMPADE / Lamps wattage
FANALE ANTERIORE / Head light ............................................. 35 / 35 W
LUCE DI POSIZIONE / Pilot light ...........................................................5 W
FANALE POSTERIORE / Tail light..............DEL TIPO A "LED"/ "LED" type
INDICATORI DIREZIONE / Turn signals ...............................................6 W
BATTERIA / Battery ................................................................... 12V-6Ah
