2011 Harley Davidson FLHTK Electra Glide Ultra Limited is one motorcycle issued by the manufacturer Harley Davidson with touring edition which supported the body design is comfortable to use. 2011 Harley Davidson FLHTK Electra Glide Ultra Limited has a capacity of 1690 cc engine with a ratio of bore x stroke 98.4 mm x 111.3 mm. For the type of engine that is engine4 Air-cooled, Twin Cam 103™ Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder.
2011 Harley Davidson FLHTK Electra Glide Ultra Limited 1
2011 Harley Davidson FLHTK Electra Glide Ultra Limited 2
2011 Harley Davidson FLHTK Electra Glide Ultra Limited 3
2011 Harley Davidson FLHTK Electra Glide Ultra Limited 4

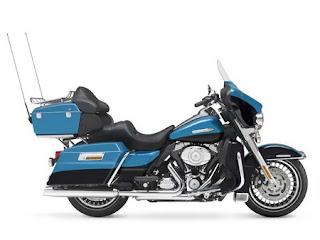

2011 Harley Davidson FLHTK Electra Glide Ultra Limited 52011 Harley-Davidson FLHTK Electra Glide Ultra Limited - USA Specifications
U.S. MSRP - Solids $23,699. Two-Tones $24,699. Custom Colors $24,899
DIMENSIONS
Length 98.6 in. (2504 mm)
Overall Width 38.0 in. (965 mm)
Overall Height 61.0 in. (1549 mm)
Seat Height:
• Laden2 27.3 in. (693 mm)
• Unladen 29.1 in. (739 mm)
Ground Clearance 5.1 in. (130 mm)
Rake (steering head) 26°
Fork Angle 29.2°
Trail 6.7 in. (170 mm)
Wheelbase 63.5 in. (1613 mm)
Tires (Dunlop® Harley-Davidson Series, bias narrow whitewall):
• Front – D408F NW 130/80B17 65H
• Rear – D407 NW 180/65B16 81H
Fuel Capacity 6.0 gal. (22.7 L)
(warning light at approximately 1.0 gal.)
Oil Capacity (w/filter) 4.0 qts. (3.8 L)
Transmission Capacity 1.0 qts.
Primary Chain
Case Capacity3 1.4 qts.
Weight:
• As Shipped 857 lbs. (388.7 kg)
• In Running Order 901 lbs. (408.7 kg)
• Gross Vehicle Weight Rating 1360 lbs. (616.9 kg)
• Gross Axle Weight Rating
• Front 500 lbs. (226.8 kg)
• Rear 927 lbs. (420.5 kg)
ENGINE
Engine4 Air-cooled, Twin Cam 103™ Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.875 in. x 4.38 in. (98.4 mm x 111.3 mm)
Displacement 103 cu. in. (1690 cc)
Compression Ratio 9.6:1
Fuel System4 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Fiberglass, washable
Lubrication System Pressurized, dry-sump with oil cooler
DRIVETRAIN
Primary Drive Chain, 34/46 ratio
Final Drive Belt, 32/68 ratio
Clutch Multi-plate, wet
Transmission 6-Speed Cruise Drive®
U.S. Gear Ratios (overall):
• 1st 9.593
• 2nd 6.65
• 3rd 4.938
• 4th 4
• 5th 3.407
• 6th 2.875
CHASSIS
Frame Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded
Swingarm Mild steel; two-piece drawn and welded section; forged junctions; MIG welded
Front Forks 41.3 mm telescopic, triple-circuit damping
Rear Shocks Air-adjustable
Wheels5: Contrast Chrome, 28-spoke
Cast Aluminum
• Front 17 in. x 3 in. (432 mm x 76 mm)
• Rear 16 in. x 5 in. (406 mm x 127 mm)
Brakes:
• Caliper Type 32 mm, 4-piston fixed front and rear
• Rotor Type (diameter x width): Patented, fixed rotors
• Front (dual) 11.81 in. x .2 in. (300 mm x 5 mm)
• Rear 11.81 in. x .28 in. (300 mm x 7 mm)
• Anti-lock Braking System (option) Available
Suspension Travel:
• Front Wheel 4.6 in. (117 mm)
• Rear Wheel 3 in. (76 mm)
Engineered for Sidecar Use Available
PERFORMANCE
Engine Torque6 (per SAE J1349):
• North America 102 ft. lbs. @ 3500 RPM (138 Nm @ 3500 RPM)
Lean Angle:
• Right 33°
• Left 31°
Fuel Economy7
(EPA urban/highway test)
35/54 mpg (6.70/4.40 L/100 km)
ELECTRIC
Battery (per Battery Council International Rating)
Sealed, maintenance-free, 12V, 28-amp/hour, 370 cca
Charging Three-phase, 50-amp system (585W @ 13V, 2000 RPM, 650W max power @ 13V)
Starting 1.2 kW electric with solenoid shift starter motor engagement
Lights (as per country regulation):
• Headlamp (quartz halogen) 55-watt low beam, 60-watt high beam
• Auxiliary Lamps Two @ 35W (except where prohibited by law)
• Tail/Stop Lights 8W/28W (5W/21W)
• Turn Signal Lights 28W (21W) self-canceling
• Indicator Lamps - High beam, running lights, front fender running lights, directional light bar, low oil pressure, engine diagnostics, cruise control, speakers, accessory, security system8, 6-speed, low fuel warning, ABS
• Electric Power Outlet - Tour-Pak® 12 volt – 15 amp power supply
COLOR OPTIONS
Solids
• Vivid Black
Two-Tones
• Cherry Read Sunglo/ Merlot Sunglo
• Cool Blue Pearl/Vivid Black
• Dark Candy Root Beer/ Light Candy Root Beer
Custom Color
• Psychedelic Purple/ Vivid Black
• Apple Green/Vivid Black
WARRANTY
Warranty9 24 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter
1 Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information. All models feature 6-speed transmission (VRSC™ models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
2 Measurement reflects 180 lb. (81.7 kg) operator weight.
3 Primary case oil fill is 45 oz. or as needed to fill to bottom of diaphragm.
4 Recommended 91 octane or higher fuel (R+M)/2.
5 Standard and optional wheels may vary by country and region.
6 Values shown are nominal. Performance may vary by country and region.
7 Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
8 North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
9 See motorcycle owner’s manual for complete details.
2011 Harley-Davidson FLHTK Electra Glide Ultra Limited - Canada Specifications
Canadian MSRP - See your local retailer for pricing information.
DIMENSIONS Metric Units
Length 2525 mm
Seat Height
Laden 1
Unladen 1 745 mm
Ground Clearance 130 mm
Rake Steering Head
Trail 170 mm
Wheelbase 1625 mm
Fuel Capacity 22.7 L
Oil Capacity 3.8 L
Weight
Dry Weight 400 kg
Running Order 413 kg
Luggage Capacity
Volume
Weight
POWERTRAIN
Engine 2 Air-cooled, Twin Cam 103™Air-cooled, Twin Cam 103™
Displacement 1690 cc
Bore x Stroke in. / in.98.4 mm / 111.1 mm
Engine Torque J1349
Engine Torque 3 ft. lbs. @ rpm135 Nm @ 3250 rpm
Fuel System 4 Electronic Sequential Port Fuel Injection (ESPFI)Electronic Sequential Port Fuel Injection (ESPFI)
Compression Ratio 9.6:1
Primary Drive Chain, 34/46 ratioChain, 34/46 ratio
Fuel Economy
Fuel Economy City 5 6.72 l/100km
Fuel Economy Hwy 5 4.36 l/100km
Gear Ratio (Overall)
1st 9.594
2nd 6.65
3rd 4.939
4th 3.999
5th 3.407
6th 2.875
WHEELS / TIRES
Wheels
Front 6 Contrast Chrome, 28-spoke Cast AluminumContrast Chrome, 28-Spoke Cast Aluminum
Wheel Option 6
Rear 6 Contrast Chrome, 28-spoke Cast AluminumContrast Chrome, 28-Spoke Cast Aluminum
Tire Size
Front
Rear
ELECTRICAL
Instruments Fairing-mounted electronic speedometer with odometer; time-of-day clock on CD player/stereo; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6-speed indicator light; cruise control indicator lightFairing-mounted electronic speedometer with odometer; time-of-day clock on CD player/stereo; dual trip meter; low fuel indicator light and mileage countdown feature; low oil pressure indicator light; engine diagnostics readout; LED indicator lights; 6-speed indicator light; cruise control indicator light; Tachometer with fuel, voltage, oil pressure and ambient air temperature gauges
Indicator Lamps 7 High beam, running lights, front fender running lights, directional light bar, low oil pressure, engine diagnostics, cruise control, speakers, accessory, security system, 6-speed, low fuel warning, ABSHigh beam, neutral, low oil pressure, engine diagnostics, turn signals, security system(optional), ABS (optional), cruise control (optional), 6-speed, low fuel warnings
CHASSIS
Brakes 32 mm, 4-piston fixed front and rea32mm, 4-piston fixed front and rear
Parking Brake
Lean Angle
Exhaust System Chrome, 2-1-2 dual exhaust with tapered mufflersChrome, 2-1-2 dual exhaust with slash-up mufflers
COLOR OPTIONS
Vivid Black
Cherry Red Sunglo / Merlot Sunglo
Cool Blue Pearl / Vivid Black
Dark Candy Root Beer / Light Candy Root Beer
Psychadelic Purple / Vivid Black
Apple Green / Vivid BlackVivid Black
Cherry Red Sunglo / Merlot Sunglo
Cool Blue Pearl / Vivid Black
Dark Candy Root Beer / Light Candy Root Beer
Psychadelic Purple / Vivid Black
Apple Green / Vivid Black
1 Measurement reflects 180 lb. (81.7 kg) operator weight.
2 Recommended 91 octane or higher fuel (R+M)/2.
3 Values shown are nominal. Performance may vary by country and region.
4 Standard and optional fuel systems may vary by country.
5 Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6 Standard and optional wheels may vary by country and region.
7 North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
8 See motorcycle owner's manual for complete details.
Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information. All models feature 6-speed transmission (VRSC™ models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
