2011 Harley Davidson Police Road King Review
2011 Harley Davidson Police Road King is one of the type issued by the motorcycle manufacturer Harley Davidson with Police Road King edition. This 2011 Harley Davidson Police Road King has a capacity of 1,690 cc engine with a ratio of Bore x stroke 98.4 mm x 111.1 mm. For the type of engine Is a Engine 456 Air-cooled, Twin Cam 103, Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder.
2011 Harley Davidson Police Road King is one of the type issued by the motorcycle manufacturer Harley Davidson with Police Road King edition. This 2011 Harley Davidson Police Road King has a capacity of 1,690 cc engine with a ratio of Bore x stroke 98.4 mm x 111.1 mm. For the type of engine Is a Engine 456 Air-cooled, Twin Cam 103, Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder.

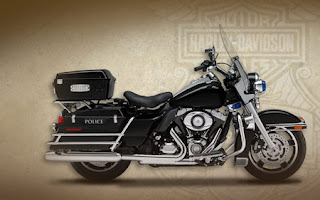

2011 Harley Davidson Police Road King 1
2011 Harley Davidson Police Road King 2
2011 Harley Davidson Police Road King 3
2011 Harley Davidson Police Road King 4
2011 Harley Davidson Police Road King 52011Harley Davidson Police Road King - Specifications
MSRP - See your local retailer for pricing information.
Dimensions
Length 95.1 in. / 2,416 mm
Overall Width 34.5 in. / 876 mm
Overall Height 55.1 in. / 1,400 mm
Seat Height
Laden 27.3 in. / 693 mm
Unladen 30.7 in. / 780 mm
Ground Clearance 5.1 in. / 130 mm
Rake (steering head) 26 (deg)
Fork Angle 29.25 (deg)
Trail 6.69 in. / 170 mm
Wheelbase 63.5 in. / 1,613 mm
Tires
Type 3 Type|Dunlop® Harley-Davidson Series, bias blackwall front and rear
Front Model D408F
Front Specification BW 130/80B17
Rear Model D407
Rear Specification BW 180/65B16
Extended Description Bead-retention tires designed to remain on wheel during sudden loss of pressure. Sealed, automotive-style wheel bearings requiring no end play adjustments and service interval of 100,000 miles (160,000 km).
Fuel Capacity 6 gal. / 22.7 l
Reserve Fuel Capacity, Fuel Injection (warning light) 1 gal. / 3.8
Oil Capacity (w/filter) 4 qts. / 3.8
Transmission Capacity 1 qts.
Primary Chain Case Capacity 1.4 qts.
Weight
As Shipped 791 lbs. / 358.8
Weight, In Running Order 828 lbs. / 375.6
Gross Vehicle Weight Rating 1,360 lbs. / 616.9
Front 500 lbs. / 226.8
Rear 927 lbs. / 420.5
Powertrain 1
Engine 456 Air-cooled, Twin Cam 103
Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Bore 3.875 in. / 98.4 mm
Stroke 4.375 in. / 111.1 mm
Displacement 103 cu. in. / 1,690 mm
Compression Ratio 9.6:1
Fuel System 7 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Fiberglass, washable
Lubrication System Pressurized, dry-sump
Drivetrain 1
Primary Drive 34/46 ratio
Final Drive 8 32/68 ratio
Clutch multi-plate, wet
Transmission 6-Speed Cruise Drive®
Gear Ratios (overall)
1st 9.593
2nd 6.65
3rd 4.938
4th 4
5th 3.378
6th 2.875
Chassis 1
Frame Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded
Swingarm Mild steel, two-piece drawn and welded section, forged junctions, MIG welded
Front Fork 41.3 mm telescopic
Rear Shocks Air-adjustable
Wheels
Front Type Black, Slotted Disc Cast Aluminum
Wheels, Front Width 3 in. / 76mm
Front Height 17 in. / 432mm
Rear Type Black, Slotted Disc Cast Aluminum
Rear Width 5 in. / 127mm
Rear Height 16 in. / 406mm
Brakes
Caliper Type 32mm 4-piston front and rear
Rotor Type Patented, uniform expansion
Front Diameter 11.81 in / 300mm
Front Width 0.2 in. / 5.1mm
Front Dual Yes
Rear Diameter 11.81 in. / 300 mm
Rear Width 0.28 in. / 7.1 mm
Anti-Lock Braking System Optional
Suspension Travel, Front 4.6 in. / 117 mm
Suspension Travel, Rear 3 in. / 76 mm
Engineered for sidecar Yes
Performance 1
Engine Torque (Per SAE) J1349
North America (ft. lbs.) 102
North America (rpm) 3,500
Lean Angle, Right 33 deg
Lean Angle, Left 31 deg
Fuel Economy: Urban 35 / 6.7
Fuel Economy: Highway 54 / 4.4
Electric 1
Battery Sealed, maintenance-free, 12V, 28-amp/hour, 270 cca (per Battery Council International Rating)
Charging Three-phase, 50-amp system (585W @ 13V, 2000 rpm, 650W max power @ 13V)
Starting 1.2 kW electric with solenoid shift starter motor engagement
Lighting
Headlamp Quartz halogen, 55-watt low beam, 60-watt high beam
Tail/Stop 8W/28W -5W/21W
Turn Signal 28W (21W) self-canceling
Pursuit Lamps Front-mounted PAR-36 lamps, one red, one blue, incandescent
Front-mounted PAR-36 lamps, one red, one blue, incandescent
Flashers Four-way, integrated into turn signal switches
Four-way, integrated into turn signal switches
Indicator Lamps Indicator Lamps High beam, turn signals, hazard signals, neutral, low oil pressure, engine diagnostics, low fuel, police emergency light activation, 6-speed, ABS light (optional)
Electronic Siren (optional) Weatherproof 100-watt siren amplifier, 100-watt siren speaker and integrated PA system specially designed for use on Harley-Davidson Police motorcycles; 2-tones: wail and yelp with additional airhorn capability
Weatherproof 100-watt siren amplifier, 100-watt siren speaker and integrated PA system specially designed for use on Harley-Davidson Police motorcycles; 2-tones: wail and yelp with additional airhorn capability
Warranty 1
Warranty 10 24 months (unlimited mileage)
Service Interval 11 First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter
1Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information. All models feature 6-speed transmission (VRSC™ models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
2Measurement reflects 180 lb. (81.7 kg) operator weight.
3Standard and optional wheels may vary by country and region.
4Recommended 91 octane or higher fuel (R+M)/2.
5Thermostatically controlled oil cooler standard equipment.
6Automatic compression release.
7Standard and optional fuel systems may vary by country and region.
8U.S. and HDI markets, except Japan: Belt, 32/64 ratio.
9Values shown are nominal. Performance may vary by country and region.
10See motorcycle owner’s manual for complete details.
11Inspections of certain systems and components are required at 2,500 mile (4,000 km) intervals. See Owner’s Manual for full details.
Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information. All models feature 6-speed transmission (VRSC™ models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
MSRP - See your local retailer for pricing information.
Dimensions
Length 95.1 in. / 2,416 mm
Overall Width 34.5 in. / 876 mm
Overall Height 55.1 in. / 1,400 mm
Seat Height
Laden 27.3 in. / 693 mm
Unladen 30.7 in. / 780 mm
Ground Clearance 5.1 in. / 130 mm
Rake (steering head) 26 (deg)
Fork Angle 29.25 (deg)
Trail 6.69 in. / 170 mm
Wheelbase 63.5 in. / 1,613 mm
Tires
Type 3 Type|Dunlop® Harley-Davidson Series, bias blackwall front and rear
Front Model D408F
Front Specification BW 130/80B17
Rear Model D407
Rear Specification BW 180/65B16
Extended Description Bead-retention tires designed to remain on wheel during sudden loss of pressure. Sealed, automotive-style wheel bearings requiring no end play adjustments and service interval of 100,000 miles (160,000 km).
Fuel Capacity 6 gal. / 22.7 l
Reserve Fuel Capacity, Fuel Injection (warning light) 1 gal. / 3.8
Oil Capacity (w/filter) 4 qts. / 3.8
Transmission Capacity 1 qts.
Primary Chain Case Capacity 1.4 qts.
Weight
As Shipped 791 lbs. / 358.8
Weight, In Running Order 828 lbs. / 375.6
Gross Vehicle Weight Rating 1,360 lbs. / 616.9
Front 500 lbs. / 226.8
Rear 927 lbs. / 420.5
Powertrain 1
Engine 456 Air-cooled, Twin Cam 103
Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Bore 3.875 in. / 98.4 mm
Stroke 4.375 in. / 111.1 mm
Displacement 103 cu. in. / 1,690 mm
Compression Ratio 9.6:1
Fuel System 7 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Fiberglass, washable
Lubrication System Pressurized, dry-sump
Drivetrain 1
Primary Drive 34/46 ratio
Final Drive 8 32/68 ratio
Clutch multi-plate, wet
Transmission 6-Speed Cruise Drive®
Gear Ratios (overall)
1st 9.593
2nd 6.65
3rd 4.938
4th 4
5th 3.378
6th 2.875
Chassis 1
Frame Mild steel; tubular frame; two-piece stamped and welded backbone; cast and forged junctions; twin downtubes; bolt-on rear frame with forged fender supports; MIG welded
Swingarm Mild steel, two-piece drawn and welded section, forged junctions, MIG welded
Front Fork 41.3 mm telescopic
Rear Shocks Air-adjustable
Wheels
Front Type Black, Slotted Disc Cast Aluminum
Wheels, Front Width 3 in. / 76mm
Front Height 17 in. / 432mm
Rear Type Black, Slotted Disc Cast Aluminum
Rear Width 5 in. / 127mm
Rear Height 16 in. / 406mm
Brakes
Caliper Type 32mm 4-piston front and rear
Rotor Type Patented, uniform expansion
Front Diameter 11.81 in / 300mm
Front Width 0.2 in. / 5.1mm
Front Dual Yes
Rear Diameter 11.81 in. / 300 mm
Rear Width 0.28 in. / 7.1 mm
Anti-Lock Braking System Optional
Suspension Travel, Front 4.6 in. / 117 mm
Suspension Travel, Rear 3 in. / 76 mm
Engineered for sidecar Yes
Performance 1
Engine Torque (Per SAE) J1349
North America (ft. lbs.) 102
North America (rpm) 3,500
Lean Angle, Right 33 deg
Lean Angle, Left 31 deg
Fuel Economy: Urban 35 / 6.7
Fuel Economy: Highway 54 / 4.4
Electric 1
Battery Sealed, maintenance-free, 12V, 28-amp/hour, 270 cca (per Battery Council International Rating)
Charging Three-phase, 50-amp system (585W @ 13V, 2000 rpm, 650W max power @ 13V)
Starting 1.2 kW electric with solenoid shift starter motor engagement
Lighting
Headlamp Quartz halogen, 55-watt low beam, 60-watt high beam
Tail/Stop 8W/28W -5W/21W
Turn Signal 28W (21W) self-canceling
Pursuit Lamps Front-mounted PAR-36 lamps, one red, one blue, incandescent
Front-mounted PAR-36 lamps, one red, one blue, incandescent
Flashers Four-way, integrated into turn signal switches
Four-way, integrated into turn signal switches
Indicator Lamps Indicator Lamps High beam, turn signals, hazard signals, neutral, low oil pressure, engine diagnostics, low fuel, police emergency light activation, 6-speed, ABS light (optional)
Electronic Siren (optional) Weatherproof 100-watt siren amplifier, 100-watt siren speaker and integrated PA system specially designed for use on Harley-Davidson Police motorcycles; 2-tones: wail and yelp with additional airhorn capability
Weatherproof 100-watt siren amplifier, 100-watt siren speaker and integrated PA system specially designed for use on Harley-Davidson Police motorcycles; 2-tones: wail and yelp with additional airhorn capability
Warranty 1
Warranty 10 24 months (unlimited mileage)
Service Interval 11 First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter
1Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information. All models feature 6-speed transmission (VRSC™ models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
2Measurement reflects 180 lb. (81.7 kg) operator weight.
3Standard and optional wheels may vary by country and region.
4Recommended 91 octane or higher fuel (R+M)/2.
5Thermostatically controlled oil cooler standard equipment.
6Automatic compression release.
7Standard and optional fuel systems may vary by country and region.
8U.S. and HDI markets, except Japan: Belt, 32/64 ratio.
9Values shown are nominal. Performance may vary by country and region.
10See motorcycle owner’s manual for complete details.
11Inspections of certain systems and components are required at 2,500 mile (4,000 km) intervals. See Owner’s Manual for full details.
Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information. All models feature 6-speed transmission (VRSC™ models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
